Pressurized Water System Dual Gauge Pressure PWR75-00003

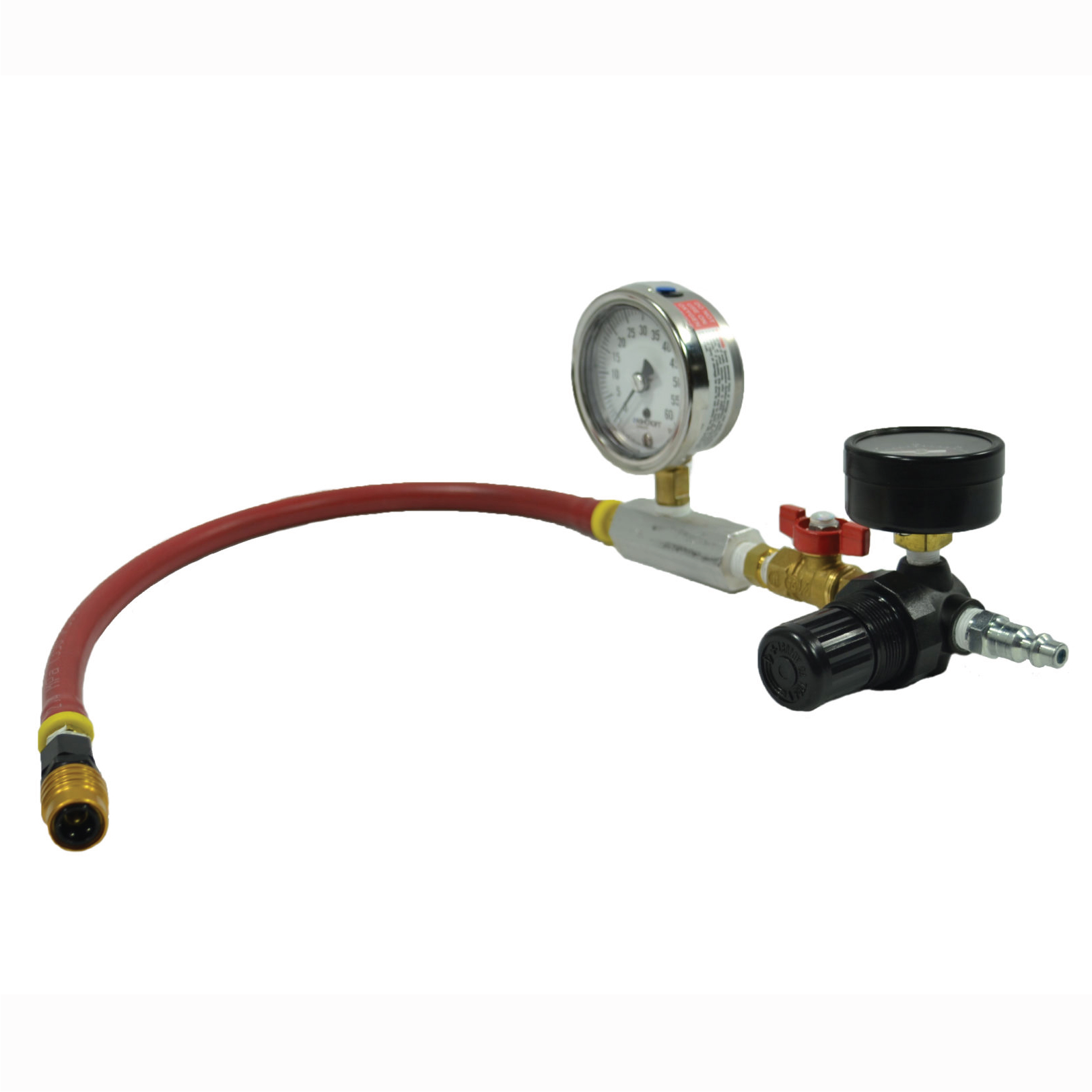

Pressurized Water System – Dual Gauge with Pressure Regulator.

Used with our Pressurized Water Tanks and Kits. Allows the user to safely set the pre-loaded pressure in the cooling system once it is warmed up to 180-185 degrees.

Directions For Use:

• Make sure the Pressure Setting Tool Valve is closed and the regulator is set to the lowest setting by pulling the knob outward and turning counterclockwise until it stops.
• Connect compressed air source to gauge and then connect the disconnect to the pressure tank.
• Open the valve and increase the system pressure by turning the regulator knob clockwise until the desired system pressure is shown on the system gauge.
• 7-8psi if under 80° Ambient
• 5-6psi if over 80° Ambient
• Close the Valve and disconnect the gauge from the pressure tank.
• The Cooling System is now Set.
